  • Wilo-Multivert MVIL

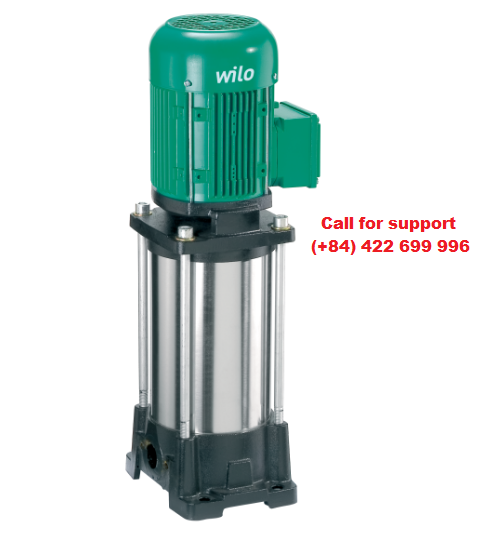

Wilo-Multivert MVIL

  • - Lưu lượng max: 14 m3/h
  • - Cột áp max: 140 m
  • - Nhiệt độ chất lỏng: -15 to +90 °C

    • Giá: Liên hệ
    Design
    Non-self-priming multistage pump
    Application
    Water supply and pressure boostingCommerce and industryWashing and spraying systemsRainwater utilisationCooling and cold water circuits
    Type key
    Example: MVIL 107N-16/E/3-400-50-2
    MVIL Multistage vertical high-pressure centrifugal pump
    1 Volume flow in m3/h
    07 Number of impellers
    N Standardised motor
    16 Maximum operating pressure in bar
    E Type of gasket
    E = EPDM
    3 1 = 1~ (single-phase current)
    3 = 3~ (three-phase current)
    400 Connection voltage in V
    50 Frequency in Hz
    2 Number of poles
    Special features/product advantages
    Space-saving, compact block design
