  • Wilo-Multivert MVIE

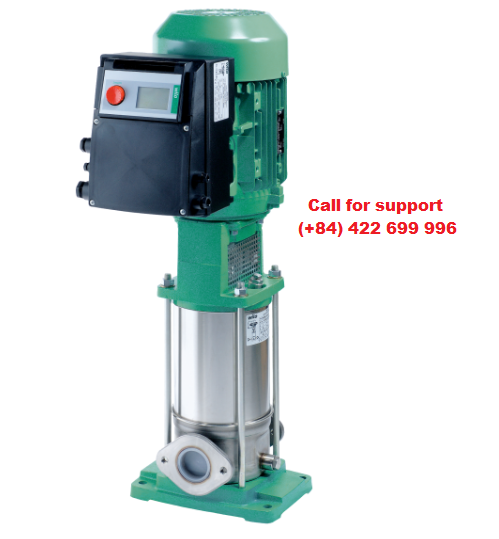

Wilo-Multivert MVIE

  • - Lưu lượng max: 150 m3/h
  • - Cột áp max: 100 m
  • - Nhiệt độ chất lỏng: -15 to +120 °C

    • Giá: Liên hệ
    Design
    Non-self-priming multistage pump with integrated frequency converter
    Application
    Water supply and pressure boostingFire extinguishing systemsIndustrial circulation systemsProcess engineeringCooling water circulation systemsWashing and sprinkling systems
    Type key
    Example: MVIE 7003/1-3/16/E/3-2
    MVIE Vertical high-pressure multistage centrifugal pump
    70 Flow rate in m3/h
    03 Number of impellers
    1 Number of trimmed impellers;
    [only MVIE 70.. and 95..]
    3 Material
    1 = 1.4301 (AISI 304);
    [only MVIE 8.. and smaller]
    2 = 1.4404 (AISI 316L)
    3= pump housing EN-GJL-250 (cataphoretic coating), hydraulics 1.4301 (AISI 304);
    [only MVIE 70.. and 95..]
    16 Flange type
    16 = flange PN16 (round)
    25 = flange PN25 (round)
    P = Victaulic coupling [only MVIE 8.. and smaller]
    E Gasket type
    E = EPDM
    3 1 = 1~ (alternating current)
    3 = 3~ (three-phase current)
    2 Number of poles
    M13 Only up to MVIE 403, with 1~ (alternating current )
    Preset operating mode on delivery
    M13 = mode 1 or 3 (manual or remote control)
    M2 = mode 2 (pressure regulation mode)
    Special features/product advantages
    Easy commissioningIntegrated frequency converter with large control rangeFull motor protectionHydraulics in stainless steelDrinking water approval for all components that come in contact with the fluid (EPDM version)
