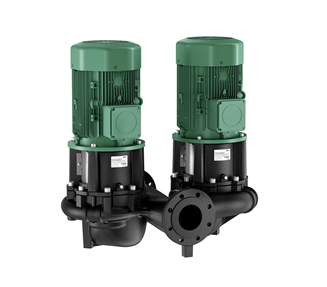

Wilo-Atmos GIGA-D
Giá: Liên hệ
Design
Glanded double pump in in-line design with flange connection
Application
Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
Design
Glanded double pump in in-line design with flange connection
Application
Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
|
|
Example |
Atmos GIGA-D 40/160-5.5/2 |
|
D |
In-line twin-head pump |
|
40 |
Nominal diameter DN of the pipe connection |
|
160 |
Nominal impeller diameter |
|
5.5 |
Rated power P2 in kW |
|
2 |
Number of poles |
Technical data
* Permitted temperature range of the fluid: -20 °C to +140 °C* Max. ambient temperature 40 °C
* Mechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
* Mains connection 3~400 V, 50 Hz (others on request) IP rating IP55 Nominal diameter DN 32 to DN 200 Standard version for operating pressure: 13 bar (up to +140 °C) / 16 bar (up to +120 °C)
Materials
* Pump housing and lantern: Standard: EN-GJL-250;* Impeller: Standard: EN-GJL-200;special version: Bronze CuSn 10, stainless steel 1.4408
* Shaft: 1.4122 Mechanical seal: AQEGG; other mechanical seals on request
Construction
Single-stage, low-pressure double pump in in-line design with
Switchover valve Mechanical seal Flange connection with pressure measuring connection R 1/8 Lantern Coupling IEC standard motor
