  • Bơm trục ngang đa tầng cánh Economy MHIL

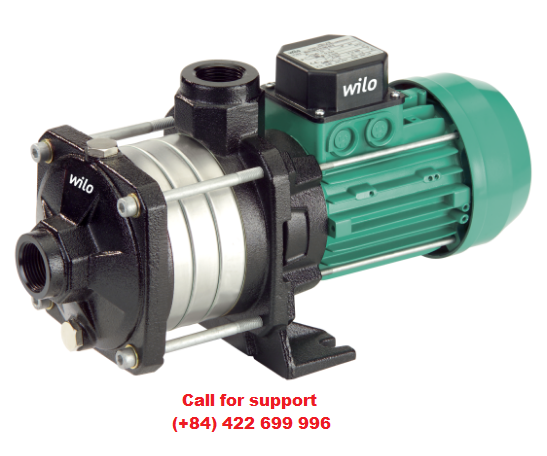

Bơm trục ngang đa tầng cánh Economy MHIL

  • - Lưu lượng max: 12 m3/h
  • - Cột áp max: 65m
  • - Nhiệt độ chất lỏng: -15 deg C ~ 90 deg C

    • Giá: Liên hệ

    Design
    Non-self-priming multistage pump
    Application
    - Water supply and pressure boosting
    - Commerce and industry
    - Washing and spraying systems
    - Rainwater utilisation
    - Cooling and cold water circuits
    Pump characteristic


    Type key
    Example: MHIL 302-E-3-400-50-2-IE3
    MHIL Multistage horizontal high-pressure centrifugal pump
    3 Flow rate in m3/h
    02 Number of impellers
    E Gasket type
    E = EPDM
    V = FKM (Viton)
    3 1 = 1~ (alternating current)
    3 = 3~ (three-phase current)
    400 Connection voltage in V
    50 Frequency in Hz
    2 Number of poles
    IE3 IE3 motor

    Special features/product advantages
    - IE3 IEC three-phase AC motor (≥ 0.75 kW)
    - Impellers and stage housing made of stainless steel
    - Pump housing made of EN-GJL-250 cast iron, KTL coating
    - Single-phase and three-phase versions available

    Technical data
    - Mains connection 1~230 V (±10 %), 50 Hz or optionally 220 V (±10 %), 60 Hz
    - Mains connection 3~230 V (±10 %), 50 Hz (Δ) or optionally 220 V (±10 %), 50 Hz (Δ), 400 V (±10 %), 50 Hz (Y) or optionally 460 V (±10 %), 60 Hz (Y)
    - Fluid temperature of -15 to +90 °C
    - Max. operating pressure 10 bar
    - Max. inlet pressure of 6 bar
    - Protection class 1~: IP X4; 3~: IP 54
    - Nominal diameters of pipe connections on pressure side: Rp 1 or Rp 1 ¼, depending on type
    - Nominal diameters of pipe connections on suction side Rp 1, Rp 1 ¼ or Rp 1 ½, depending on type

    Equipment/function
    - Pump in monobloc design
    - Threaded connection
    - Single-phase or three-phase motor
    - Single-phase AC motor with integrated thermal motor protection

    Materials
    - Impellers of stainless steel 1.4301
    - Stage chambers made of 1.4301 stainless steel
    - Shaft of stainless steel 1.4301 (AISI 304) or 1.4057 (AISI 431 L)
    - EPDM seal
    - Housing cover EN‐GJL‐250 (cataphoretic-coated)
    - Lower housing section EN‐GJL‐250 (cataphoretic-coated)
    - Mechanical seal made of SiC/carbon
    - Bearing of tungsten carbide
    - Pump support foot EN‐GJL‐250 (cataphoretic-coated)

    Scope of delivery
    - Pump
    - Installation and operating instructions
