Wilo-EMU TR 50-2… – TR 120-1...

Wilo-EMU TR 50-2… – TR 120-1...

  • - Nhiệt độ chất lỏng: 40 °C

  • Giá: Liên hệ
Thông tin sản phẩm
Design

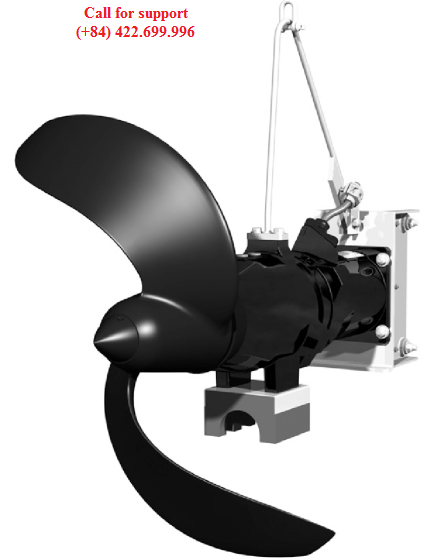

Submersible mixer with single-stage planetary gear
Application
Generation of flowSuspension of solid matterHomogenizationPrevention of floating sludge layers
Type key
E.g.: Wilo-EMU TRE 90-2.20-4/12 x
TR Submersible mixer
E High-efficiency motor in accordance with IE3 (derived from IEC 60034‑30)
90 x 10 = nominal propeller diameter in mm
2 Model
20 x 10 = propeller speed in rpm
4 Number of poles
12 x 10 = stator length in mm
x Propeller code for welded propellers, e.g. S20 (without = PUR propeller)
Special features/product advantages
Secure your processes.
The planetary gear has large dimensions so that the mixing forces are absorbed efficiently.Efficient energy usage.
The innovative blade geometry ensures the best possible specific thrust coefficient. At the same time, this reduces your energy and operating costs.Reliable operation.
Clogging-free operation with backward-curved incoming flow edge.
