BƠM WILO CÔNG NGHIỆP Bơm cấp nước / tăng áp Wilo

Helix FIRST V

- Lưu lượng max: 80 m3/h

- Cột áp max: 280m

- Nhiệt độ chất lỏng: -20 to 120 °C

Giá:

Design

Application

Thông tin sản phẩm

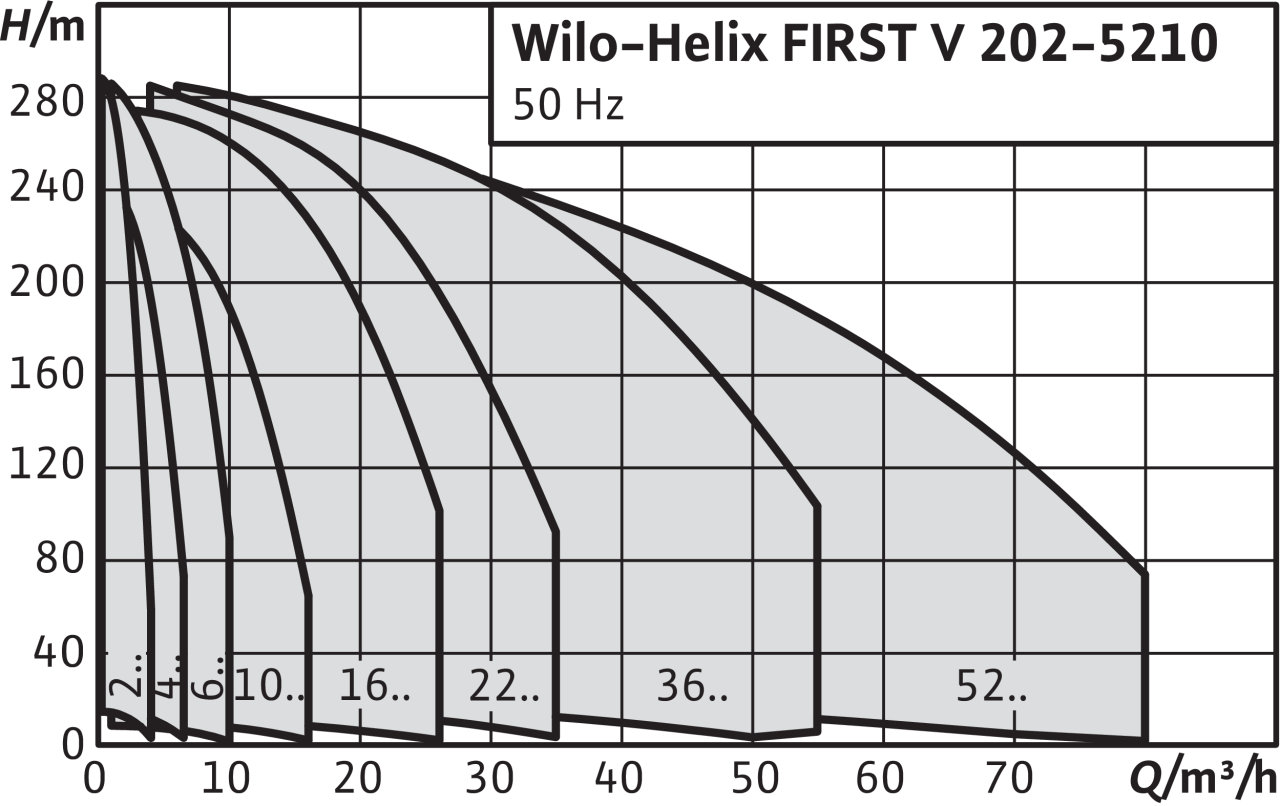

Pump characteristic

Type key

Example:	Helix FIRST V 3606/2-5/25/E/S/../400-50
Helix FIRST V	Vertical high-pressure multistage centrifugal pump in in-line design
36	Flow rate in m³/h
06	Number of impellers
2	Number of trimmed impellers
5	Pump material
	5 = Pump housing EN-GJL-250 cataphoretic-coated Hydraulics 1.4307 (AISI 304L)
25	Maximum operating pressure in bar
	16 = Helix FIRST V 2.. to 16..: 16 bar: Oval flange PN 16 Helix FIRST V 22.. to 52..: 16 bar: DIN round flange PN 16
	25 = Helix FIRST V 2.. to 16.. -5/25/E/S/..: 16 bar: DIN round flange PN 25 Helix FIRST V 2.. to 16.. -5/25/E/KS/..: 25 bar: DIN round flange PN 25 Helix FIRST V 22.. to 52..: 25 bar: DIN round flange PN 25
	30 = Helix FIRST V 2.. to 52..: 30 bar: DIN round flange PN 40
E	Seal type E = EPDM
K	Cartridge type mechanical seal
S	The coupling guard is on a line with suction and discharge ports of the pump.
400	Connection voltage in V
50	Frequency in Hz

Special features/product advantages

- Efficiency-optimised, laser-welded, optimised 2D/3D hydraulics
- Corrosion-resistant impellers, guide vane apparatuses and stage housings
- Flow and degassing-optimised hydraulic parts
- Reinforced pump housing, flow and NPSH optimised
- Space-saving and easy maintenance thanks to compact design
- Particularly sturdy coupling guard

Technical data

- Minimum Efficiency Index (MEI) ≥ 0.7
- Electrical connection: 3~400 V (±10 %), 50 Hz
- ≤ 4 kW 230 V/ 400 V; Δ/Y
- > 4 kW 400 V/ 690 V; Δ/Y
- Fluid temperature range: -20 to 120 °C
- Max. operating pressure: 16, 25 or 30 bar
- Protection class: IP 55
- Max. ambient temperature: -15 °C – +40 °C
- Helix FIRST V 2 – 16: PN 16 with oval flanges, PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005
- Helix FIRSTV 22 – 52: PN 16/PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005

Equipment/function Corrosion-resistant impellers, diffusors and stage housings
Description/design Pumps can be adapted to specific circumstances on request (e.g. motor protection, ATEX, extended ambient temperature range).
Materials - Impellers, stage housings and guide vane apparatuses of stainless steel 1.4307 (AISI 304L) - Pump housing made of EN-GJL-250, cataphoretically coated - Shaft made of stainless steel 1.4057 (AISI 304L) - Sleeve under the mechanical seal 1.4404 (AISI 316L) - O-Ring made of EPDM - Jacket pipe made of stainless steel 1.4301 (AISI 304)
Scope of delivery - Helix FIRST V high-pressure multistage centrifugal pump - Installation and operating instructions - Helix FIRST 2 – 16 (version PN16 with oval flanges): Cast iron counter flanges with the corresponding screws, nuts and gaskets
General notes - ErP (ecological design-) directive The benchmark for most efficient water pumps is MEI ≥ 0.70The efficiency of a pump with a trimmed impeller is usually lower than that of a pump with the full impeller diameter. The trimming of the impeller will adapt the pump to a fixed duty point, leading to reduced energy consumption. The minimum efficiency index (MEI) is based on the full impeller diameter.The operation of this water pump with variable duty points may be more efficient and economic when controlled, for example, by the use of a variable speed drive that matches the pump duty to the system.Information on benchmark efficiency is available at www.europump.org/efficiencychartsPumps with power consumption > 150 kW or a volume flow QBEP < 6 m3/h are not subject to the Ecodesign Directive for water pumps. Therefore, no MEI value is shown.
